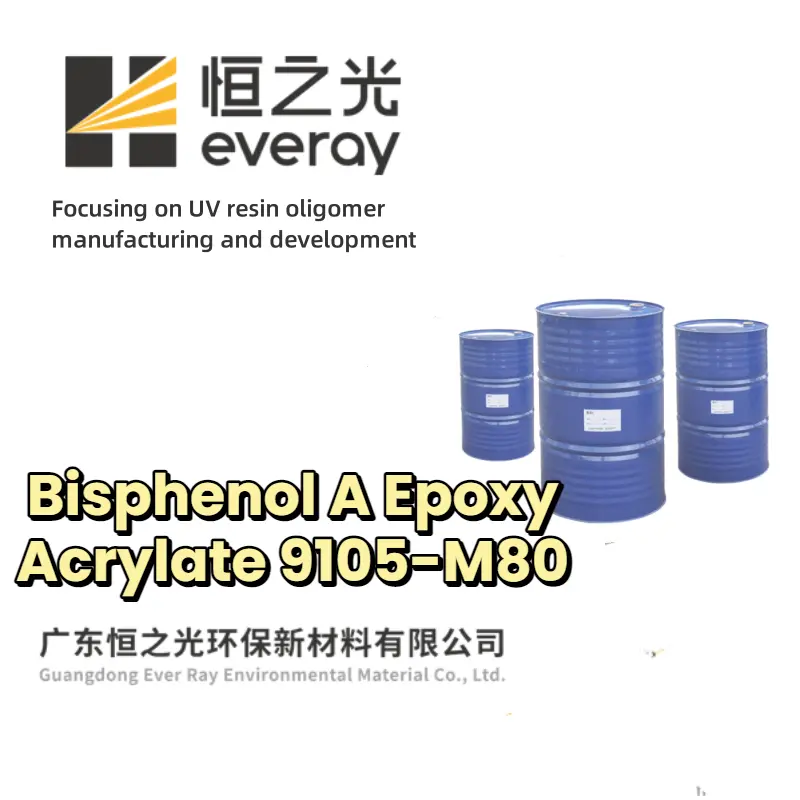

9105M-80 is a standard Bisphenol A-type epoxy acrylate resin modified with 20% TMPTA, offering a well-balanced combination of performance characteristics that make it a widely used base resin in UV coating, UV inks, UV varnish, and UV vacuum metallization applications. With excellent compatibility with most UV monomers and resins, it easily integrates into diverse formulation systems.
This resin delivers high hardness, providing strong resistance to abrasion and pressure—ideal for surfaces exposed to wear and tear. Its fast curing speed supports high-throughput production lines, while good leveling ensures smooth, defect-free film formation. The high gloss finish enhances visual appeal and product value.
9105M-80 also features high reactivity, enabling rapid crosslinking and consistent curing performance under UV light. Its excellent scratch resistance enhances surface protection, extending the life and appearance of finished products.
Whether you're formulating for protective coatings or high-end finishes, 9105M-80 offers the strength, speed, and aesthetic quality needed to meet today’s demanding UV applications.
| Parameter | Specification Details |
|---|---|
| Resin type | 9105M-80 Bisphenol A-type Epoxy Acylate Resin |
| Appearance | Transparent viscous liquid |
| Viscosity (mPa.s at 25ºC) | 60000 ~ 80000 |
| Functionality | 2 |
| Chrominance (Pt-Co) | ≤ 200 |
| Acid value (mgKOH/g) | ≤ 5 |
| Packaging | 20 / 220 (kg) Closed ordinary steel drum |
| Warranty Period | 180 days |
| Storage Conditions | This product should be stored and transported in dark opaque steel drums or containers containing corrosion-resistant and solvent-resistant coatings. Leave at least 15% space inside the container filled with air. Packaging should be stored in a cool environment below 35 ℃, and exposure to sunlight is strictly prohibited. |
9105M-80 is a standard Bisphenol A-type epoxy acrylate resin modified with 20% TMPTA. It functions as a base resin providing balanced performance for various UV-curable systems.
It features high hardness, rapid curing speed, high reactivity, good leveling properties, high gloss finishes, and excellent scratch resistance.
It is widely used in UV coatings, UV inks, UV varnishes, and UV vacuum metallization applications due to its excellent compatibility with standard UV monomers and resins.
It should be kept in dark opaque steel drums or solvent-resistant containers. Crucially, leave at least 15% empty headspace filled with air inside the container to prevent premature reaction, and store below 35 ℃ away from sunlight.
The standard warranty period is 180 days, provided it is stored properly in a cool, dark environment within the original packaging.
The resin has a functionality of 2 and features a viscosity range of 60,000 to 80,000 mPa.s at 25ºC.
