Modified Polyester Acrylate 5335B is the "Performance Hexagon Warrior" of UV Printing Coatings. In the field of UV printing and coating, modified polyester acrylate 5335B—with its comprehensive properties of rapid curing, excellent flexibility, high gloss retention, superior adhesion, and outstanding pigment dispersion and flow characteristics—has emerged as the innovative engine behind UV color inks, varnishes, and offset inks. It enables the industry to break through dual bottlenecks in both efficiency and quality.
Under UV activation, complete crosslinking is achieved within 3 seconds (energy density ≥100 mJ/cm²), making it compatible with high-speed offset printing lines running at 120 meters per minute. This represents a 50% efficiency improvement over conventional resins.
The cured film exhibits a fracture elongation greater than 150% (ASTM D638) and achieves a 5B adhesion rating (ASTM D3359) on substrates like BOPP and aluminum—effectively resolving ink delamination challenges.
Its nano-level leveling properties impart a 60° gloss value of at least 95 GU (ISO 2813). Exceptional pigment dispersion (D50 ≤0.5 μm) enhances color saturation by 30% for high-gloss book covers and luxury packaging.
A low viscosity (≤300 cps at 25°C) combined with high shear-thinning characteristics guarantees uniform ink spreading during high-speed offset printing, achieving a dot reproduction rate of over 98%.
| Resin Type | Modified Polyester Acrylate 5335B |
|---|---|
| Appearance | Transparent viscous liquid |
| Viscosity (mPa.s) | 2500~5000 (60℃) |
| Functionality | 3 |
| Chrominance (Pt-Co) | ≤800 |
| Acid Value (mgKOH/g) | ≤15 |
Target Fields: UV color inks, varnishes, and offset printing inks for food packaging, labels, metal cans, eco-friendly paper boxes, and luxury packaging.
| Packaging | 20 / 220 (kg) |
|---|---|
| Warranty Period | 180 days |
| Storage | This product should be stored and transported in dark opaque steel drums or containers containing corrosion-resistant and solvent resistant coatings. Leave at least 15% space inside the container filled with air. Packaging should be stored in a cool environment below 35 ℃, and exposure to sunlight is strictly prohibited. |

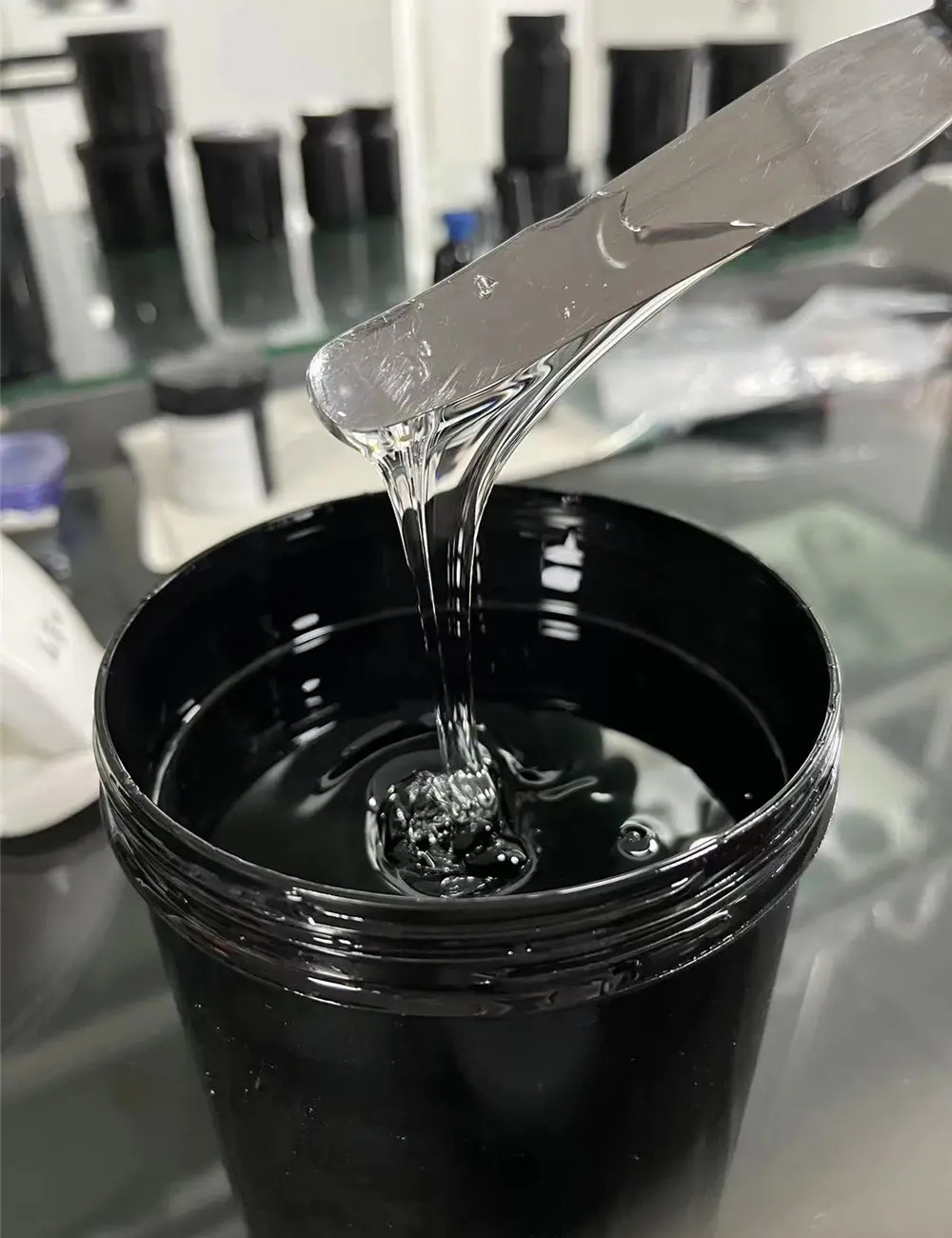

detail1
detail2
A1: It is widely used in formulation of high-performance UV color inks, varnishes, and offset inks, particularly suitable for food packaging, labels, metal cans, and luxury packaging.
A2: The resin achieves complete crosslinking within 3 seconds under UV activation with an energy density of ≥100 mJ/cm². This supports high-speed offset printing lines running up to 120 meters per minute.
A3: The cured film features a fracture elongation of over 150% (ASTM D638) and achieves a 5B adhesion rating (ASTM D3359) on BOPP and aluminum substrates, preventing ink delamination at crease areas.
A4: The technical viscosity is measured at 2500~5000 mPa.s at 60℃. Its low formulation viscosity (≤300 cps at 25°C) with high shear-thinning ensures silky flow and uniform spreading.
A5: It should be stored in dark, opaque steel drums or containers with corrosion-resistant and solvent-resistant coatings. Keep it in a cool place below 35°C, away from direct sunlight, and leave a 15% air gap in the container.
A6: The warranty period for Modified Polyester Acrylate 5335B is 180 days under recommended storage conditions.
